Support and Documentation
VAQA’O+ Lite
Description

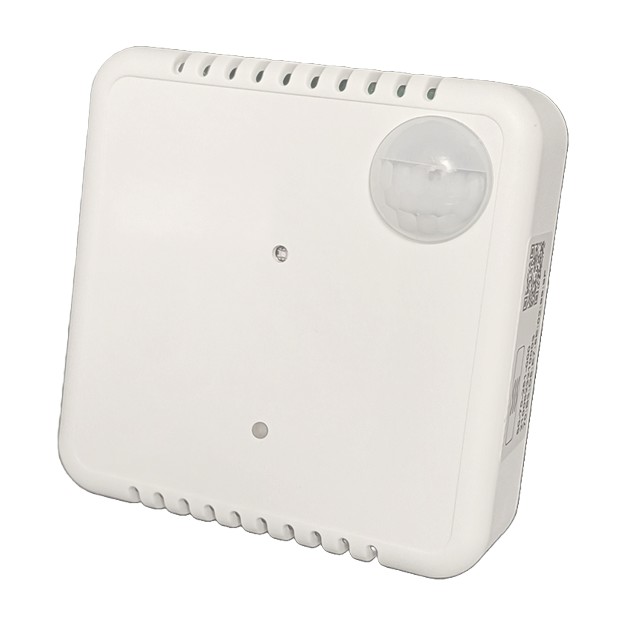

The VAQA’O+ Lite sensor measures temperature, relative humidity, carbon dioxide (CO2) concentration in the ambient air, brightness and detects the presence of people in a room in a building, flat or house. VAQA’O+ Lite monitors Indoor Air Quality (IAQ).The data is transmitted via a LoRaWAN® radio network.
Also available in:
Characteristics
- LoRaWAN®, Class A
- Easy to install and use
- Data compression
- > 5 years of autonomy
- Measuring ranges / accuracies:
– Temperature: +0°C to +55°C / ± 0.2°C
– Hygrometry: 0% to 100%rH / ± 2%.
– CO2: 0-5000ppm/ ± 100ppm
– Brightness: 1 Lux to 65 kLux
– Presence: detection up to 12 metres - Indicators (LEDs): Network pairing and IAQ
- Buzzer for configurable audible alarms
- Local or remote CO2 calibration
Applications:
- Use case: Indoor Air Quality monitoring in establishments open to minors, in the workplace and at home.
- Supervision of heating, ventilation and air conditioning installations.
- Energy optimisation of buildings (residential, tertiary).
- Indoor Air Quality (IAQ) monitoring in public buildings (schools, nurseries, hospitals, etc.)
