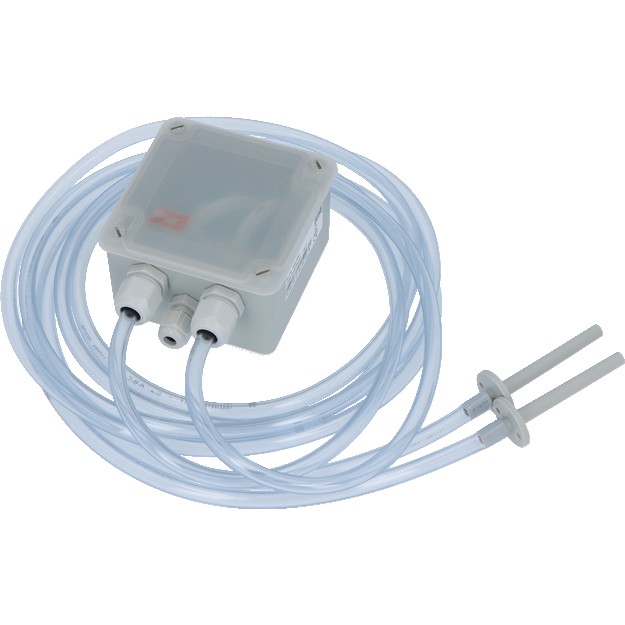

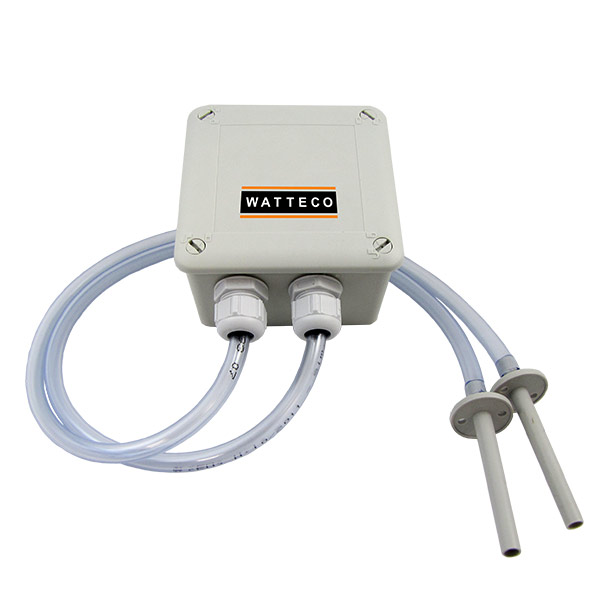

Ventil’O – LoRaWAN

Description

VENTIL’O measures air vacuum pressure in a Continuous Mandatory Ventilation (CMV) system or Air Handling Unit (AHU). Periodically or upon exceeding a configured threshold, VENTIL’O uploads its data via a LoRaWAN® network.

Also available: optional digital input to monitor equipment status.

Characteristics

  • LoRaWAN®, Class A
  • Easy to install and use
  • Differential data compression
  • Autonomy > 10 years
  • Depression measurement
    – Measuring range: 0 / + 500Pa
    – Accuracy: -/+10Pa from 0 to 200Pa; -/+5.5% beyond this range
    – Resolution: 1 Pa
  • Room temperature measurement
    – Measuring range: -20°C to +60°C
    – Accuracy: -/+2°C between -10°C and +60°C
    – Resolution: 0.1°C
  • IP65 tropicalised
  • Optional digital input to monitor equipment status

Applications:

  • Remote monitoring of a ventilation chamber, of an air handling unit.
  • Predictive maintenance through detection of the degree of fouling of the filter.
