OPERATION & MAINTENANCE OF EQUIPMENT : MEASURING ELECTRICAL CONSUMPTION
Measuring electrical consumption via the LoRaWAN network
The context
Service cooling consult is a company that deploys monitoring and control of the performance of cooling installations. This company had a technical need to measure electrical consumption. However, it did not have a solution identified.
![Willy Delage](https://www.watteco.com/wp-content/uploads/2023/05/Willy-Delage.jpg)

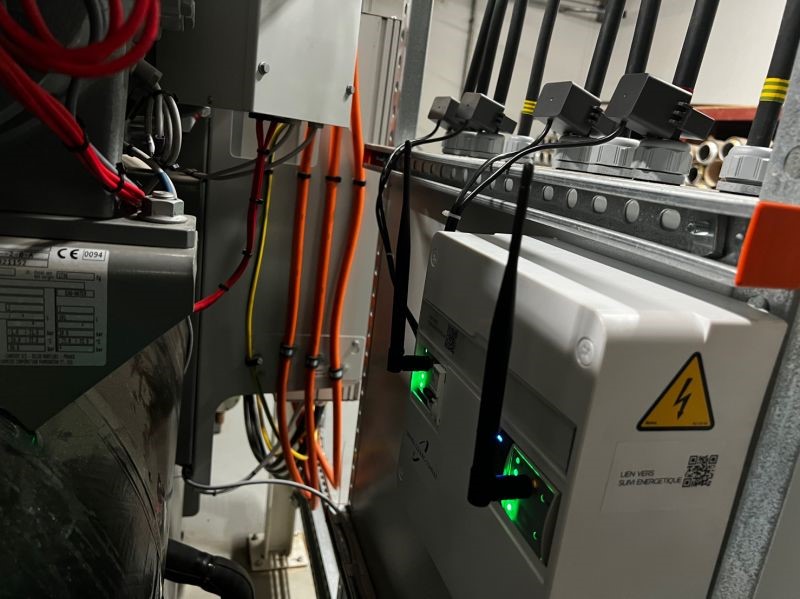

Triphas’O installed at Service cooling consult
The solution
Watteco products have allowed Service cooling consult to recover :
- The electrical power absorbed via TRIPHASO
- The cooling power delivered by the installation via a MODBUS RS485
- The efficiency of the installation (power produced / power absorbed)
All this information is sent via LoRa network on its platform and made available to the customer, allowing him to follow the efficiency of his installation.

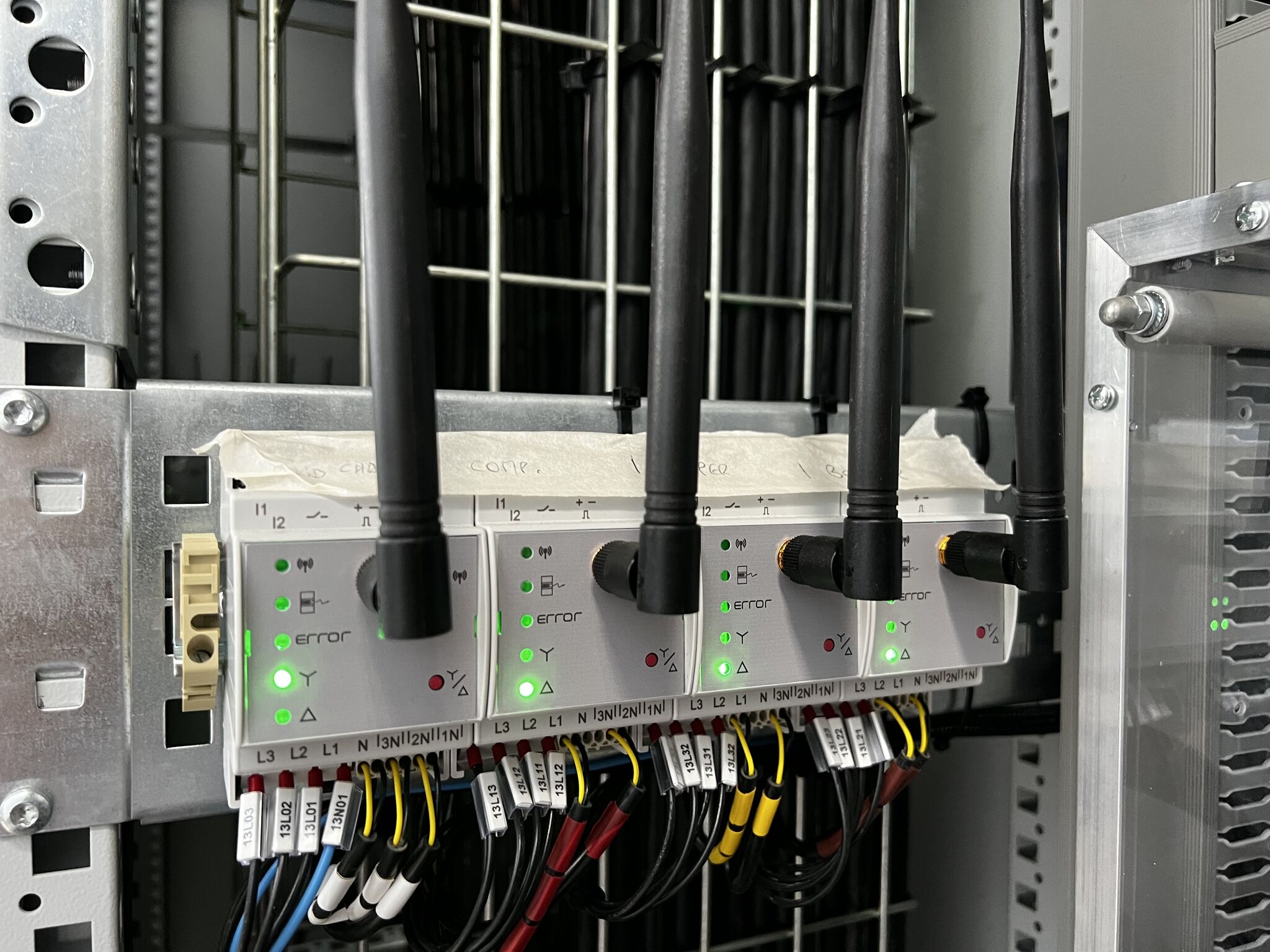

![Triphas'O SCC](https://www.watteco.com/wp-content/uploads/2023/05/TriphasO-SCC.jpg)

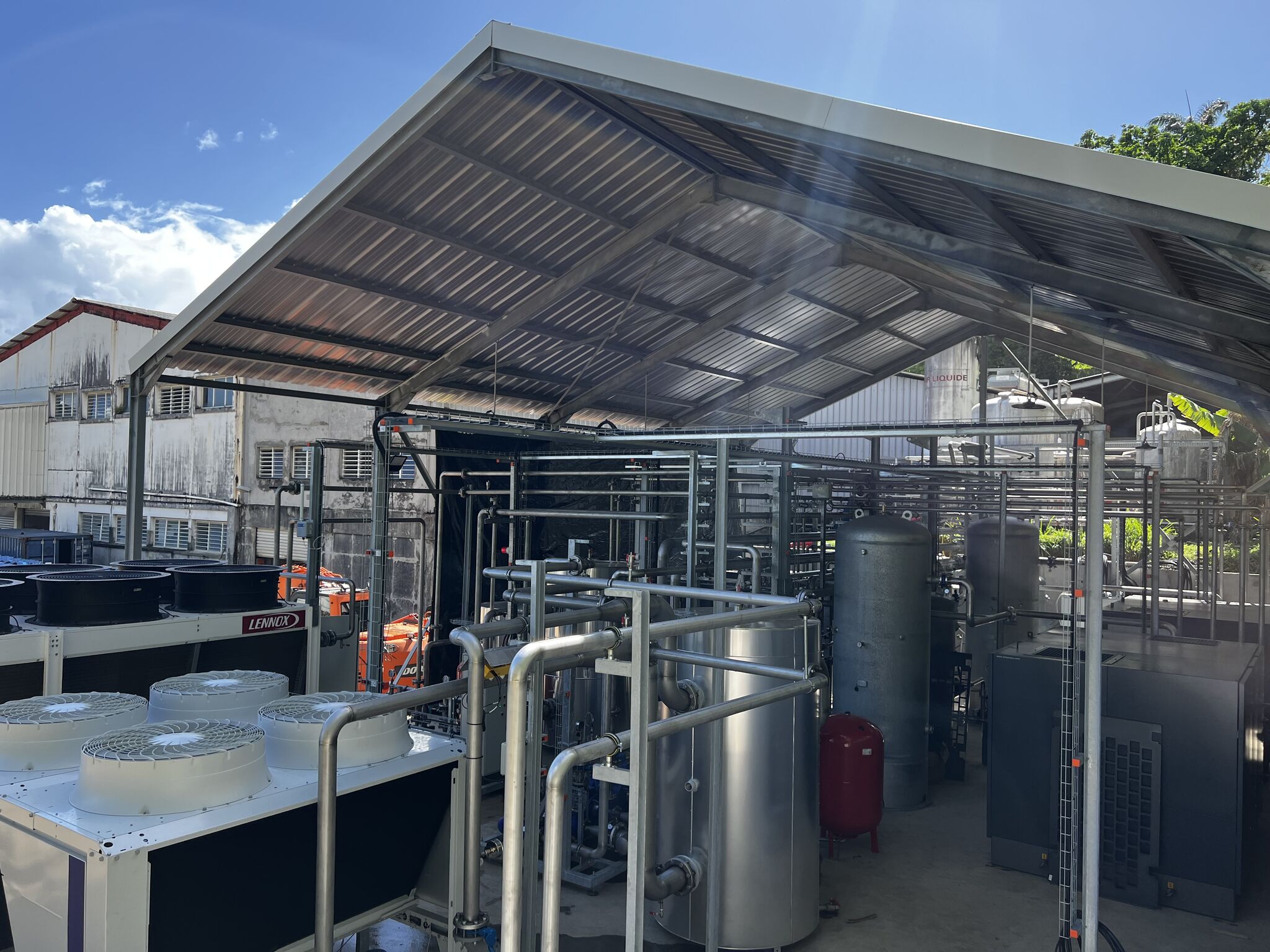

![Instalaltion de refroidissement 2](https://www.watteco.com/wp-content/uploads/2023/05/Instalaltion-de-refroidissement-2.jpg)

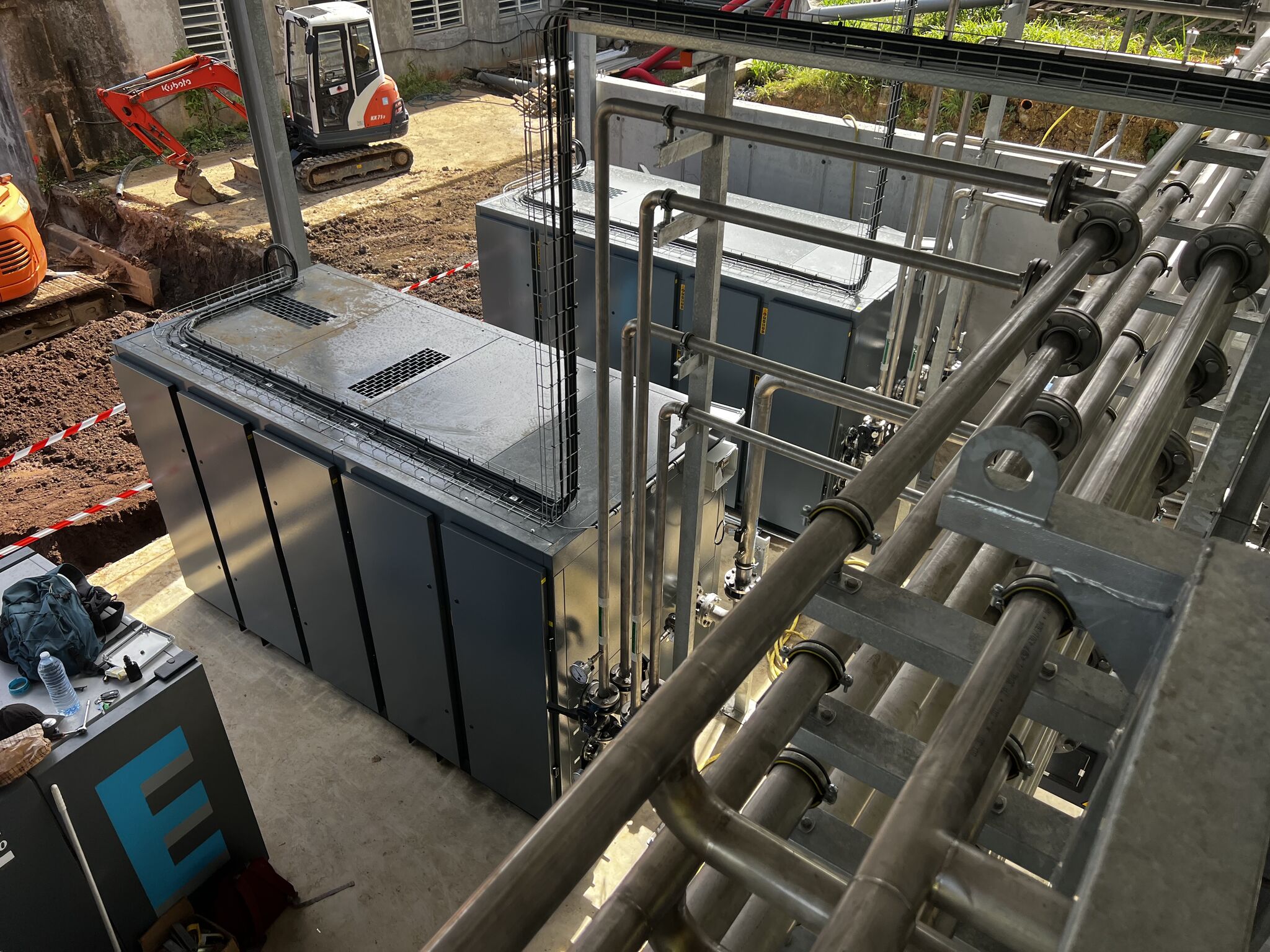

![Instalaltion de refroidissement](https://www.watteco.com/wp-content/uploads/2023/05/Instalaltion-de-refroidissement.jpg)
Willy Delage, CEO of Service cooling consult, says: “Thanks to Watteco, I can implement a packaged solution for measuring energy consumption. I am satisfied with the business and the products. Beyond that, the difference is in the support that I find to be of high quality, responsive and providing a quality service. According to Willy Delage, the three words to describe Watteco would be: “Partnership, Service, Understanding”.
Watteco has developed a connected sensor called: Triphas’O. This sensor will allow you to target the consumption items, target the consumption of specific device, follow the electrical consumption of a building remotely.
The TRIPHAS’O sensor allows remote reading of electrical energy consumption of a three-phase (with or without neutral) or single-phase installation via LoRaWAN® network. In single-phase installation, it is used for sub-metering. The sensor is specially designed to meet the energy management needs of industrial and tertiary buildings, operating with medium and high power equipment and high energy consumption.
The Triphas’O solution:
The TRIPHAS’O sensor exists in 3 versions to meet the needs of electrical measurements:
- With current transformers (opening – non intrusive) for low power: primary reference current: 0-60A or 0-400A.
- With Rogowski loops (opening – non intrusive) for high power: primary reference current from 0 to 4000A.
The data extracted from Triphas’O can be used to monitor the consumption of your sites remotely but also to compare these consumptions between all these sites.
New frames are available:
- Voltage, current, angle for all phases in one frame
- Active/reactive energies for all phases in one frame
- Active/reactive powers for all phases in one frame
- Installation assistance via RS485 port
Indeed, because Watteco listens to the customer’s needs, we have developed many tools allowing you to freely install your devices.
- The WATTECO support site is at your disposal to contact our support team and find all technical information on the product.
- And especially for the Triphas’O, we have developed the Triphas’O Tool. It is a software making the installation of Triphas’O simplified. We have developed it so that you can check instantly the different measurements (without waiting for the LoRaWAN® feedback). Thanks to this tool, the data are sent in the second by the RS485 port. You will be able to install correctly this three-phase sensor in the first time! Triphas’O Tool is now available in the Download section on the watteco support site.
